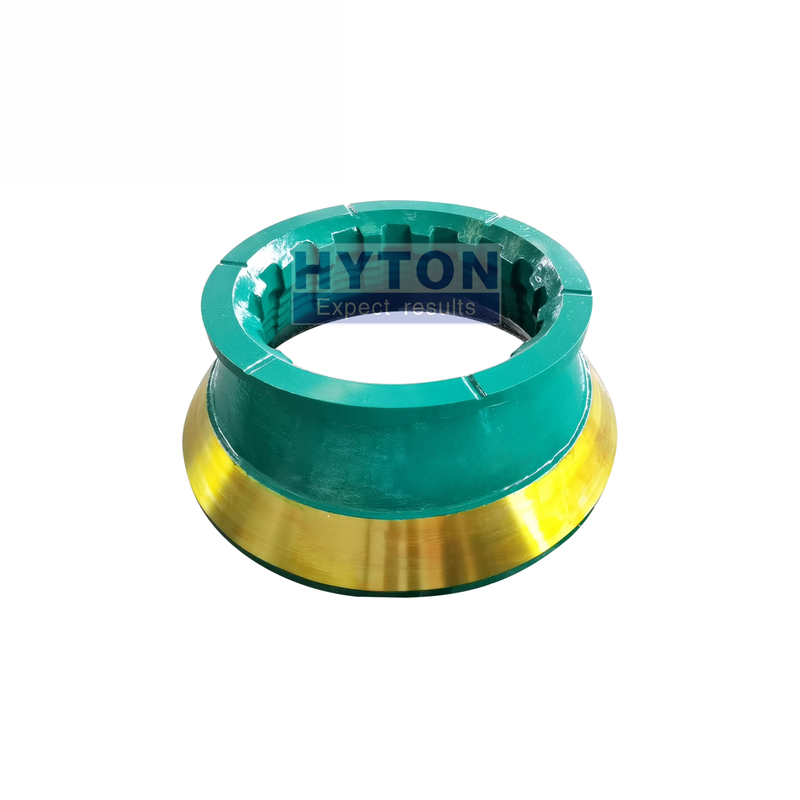

Metso HP300 Cone Crusher Wear Parts Mantle and Bowl Liners with Titanium Carbide Insert

Material : Mn18Cr2,Titanium Carbide Insert
Dimension: Standard Dimension according the original Drawings
Package : Standard and Safety Export package
MOQ: Total Weight of the order should more than 1 Ton
Delivery Time : Old Pattern -within 4 weeks, New Pattern - within 6 weeks
Availability:
Quantity:
sharethis sharing button
  • HP300

  • HYTON

  • 84749000

Metso HP300 Cone Crusher Wear Parts Mantle and Bowl Liners with Titanium Carbide Insert


Product Description

High manganese steel wear resistance parts wildely used in the Jaw Crusher, Cone Crusher, Impact Crusher, Gyratory Crusher and etc. HytonCasting produce High manganese casting liners mainly include Jaw Plate, Mantle, Bowl Liner, Feed Cone, Check plate, Arm Liner, Steel Ball, and etc.

Hyton's casting wear parts can suit lots of world famous crushing equipment brand such as: Nordberg, Sandvik, Telsmith, Terex, Symons, Trio, Kleeman, Extec and etc.

C 鄂板 Mn18Cr2 Liners with insert-官网-2

Material Composition

High Manganese Steel Mantle and Bowl Liners: Mn18Cr2

Material

C
Si Mn Cr P S
Tolerance 1.20-1.35 ≤1.0 16.00-19.00 1.50-2.50 ≤0.07 ≤0.07


High Chromium Alloy Insert: Cr26Mo0.5
Material C Si Mn Cr P S Hardness HRC
Tolerance
2.8-3.0 ≤1.0 0.5-1.1 23-28 ≤1.0 ≤0.06 58-62


Titanium Carbide Insert
Material
C Ti Mo Mn
Ni
0.5-0.7 46-50 0.7-0.9 12-15 1.8-2.2
Result 0.67
49.5 0.81 14.84
1.97


美卓HP300 衬板 镶嵌 碳化钛 (titanium insert)-详情说明


Spare parts of Hyton mainly suit the cone crusher model under below

GP100 GP200 GP300 GP500 GP11F GP220 GP330 GP550 GP100S GP200S GP300S GP500S GP7

HP100 HP200 HP300 HP400 HP500 HP700 HP800 HP3 HP4 HP5 HP6

CH420 CH430 CH440 CH550 CH660 CH870 CH840 CH880 CH890 CH895 CS420 CS430 CS440 CS660

2ft , 3ft , 4ft, 4 1/4ft, 5 1/2ft, 7ft,

Terex: C-1540 C-1540R C-1545 C-1545P C-1550 C-1550P C-1554

Telsmith: T300 T400 T500 T900  36 S & FC  48 S & FC  52 S & FC  57 S & FC  66 S & FC 38 SBS  44 SBS  52 SBS  57 SBS  68 SBS

TP260 TP350 TP450 TP600 TP900


Main Features
特色
生产1

Company Profile

Hyton(Jiangsu) Mechnical Equipment Co.ltd is a leading enterprise in the large-scale engineering machinery wear-resisting casting industry in Jiangsu Province, Nantong City. As a new high-tech enterprise professionally manufacturing wear-resisting casting product Which specialized in manufacturing and research of High manganese and high Chrome wear parts. After ten years of rapid development, Hyton(Jiangsu) has now become a renowned enterprise in China's wear-resisting casting industry, it has become one of the famous supplier of wear parts for crusher and concrete mixer. Established in June 2004, the company is now undertaking a National Torch Program Project, and five of its patented products have been honored as the "New High-Tech Product" of Jiangsu Province two of which have been listed into the New Products Program of Jiangsu Province.The company's wear-resisting casting products have been praised to be the "Famous-brand Products of Jiangsu Province", the company has been appraised as a "Trustworthy" unit of Jiangsu Province for many consecutive years.


Located in the New Material Industrial Park, Nantong City Jiangsu Province, the company covers an area of 90 Square kilometer and currently has more than 300 employees. The company is equipped with lost molding production line and lost casting production line imported from FATA Company in Italy, Inductotherm Vacuum Degassing Furnace(USA), Foseco Casting Technology(U.K), SPECTRO Spectrometer (Germany), the currently most advanced ZZ418A vertical parting flaskless shoot squeeze molding machine Disa production line, horizontal molding line and self-control lost casting production line in China, the most advanced sand treatment system in China. With three gas trolley heat treatment furnace and pusher-type furnace full-automatic heat treatment production lines, the company can annually produce 30,000 tons of various wear-resisting castings.




Testing

1.Raw Materail Inspection------ Sample Hot Metal, High Performance Raw Materail Ensure Long Service Lifetime (S<0.003, P<0.07)

2.Structural Inspection------Dye Penetration Inspection, Infrared Detection, Magnetic Particle Testing Provide Clean Surface And Higher Compactness

3.Product Size Inspection------Repeated Examination For Mould and Parts Size, Promise Accurate Parts Outline

4.Hardness Inspection------100% As Same As Original Standard

test


Packing and shipping

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

After goods well packaged, we need only 1 day ship goods to shanghai port, which means that most of the spare parts you bought from Hyton, it will get your port within 45 days all around the world if shipment by sea.

packing and shipping


Our Advantages

1) Your inquiry related to our product & price will be rapidly.

2)  Well trained & experienced staff are to answer all your inquiries in English of course.

3) Your business relationship with us will be confidential to any third party.

4)  One stop purchase service: extensive range of products for qualified offering.

5) We response to client's inquiry within 12 hours.

反馈图


FAQ

1. Q: What advantages of your products?

A: First, our products are made of high manganese steel material Mn18Cr2, which has high ductility and strength.

Second, our products have High Chromium Alloy Insert inserts, it can improve 30%-200% service life of your products.

Third, we can also provide other insert materials to increase the service life of your products, such as Titanium Carbide Insert, ceramics insert and etc.

Welcome you to contact us to learn more.


2. Q: How long is your lead time?
A: Our lead time is generally 30 days for existing patterns, 45 days for new patterns. Exact time to be finalized on receiving of finalized order.


3. Q: What kind of products do you make?
A: We specialize in mining machinery parts, crusher wear and spare parts, metallurgical equipment spare parts such as jaw plates, concaves, mantles, bowl liners, mill liners, shredder hammers, rolls, and more. They can suit lots of world famous crushing equipment brand suach as: Nordberg, Sandvik, Telsmith, Terex, Symons, Trio, Kleeman, Extec and etc. We also provide various product customization services, you can contact us to discuss more.


4. Q: How do you deal with quality problem?
A: We adhere to "Be honest people create perfect product" development principle since our foundation. Every single product is strictly checked and well packed before delivery. If something goes wrong when you use our products, please send us photos of the wear part and the machine. This will help us to identify where the problem is. If it is a quality problem, we will compensate you and do something correspondingly to avoid the same problem next time. If the problem is caused by misuse,we will provide our technical advice for your reference.
