Cone Crusher Mantle and Concave Liners Suit for Metso Nordberg HP400 Crusher Spare Parts

Material: ZGMn13Cr2, ZGMn18Cr2, ZGMn22Cr2
Dimension: Standard Dimension according the original Drawings
Package: Standard and Safety Export package
MOQ: Total Weight of the order should more than 1 Ton
Delivery Time: Old Pattern -within 4 weeks, New Pattern - within 6 weeks
Availability:
Quantity:
sharethis sharing button
  • HP400

  • HYTON

  • 84749000

Cone Crusher Mantle and Concave Liners Suit for Metso Nordberg HP400 Crusher Spare Parts


Product Description

High manganese steel wear resistance parts wildely used in the Jaw Crusher, Cone Crusher, Impact Crusher, Gyratory Crusher and etc. HytonCasting produce High manganese casting liners mainly include Jaw Plate, Mantle, Bowl Liner, Feed Cone, Cheek plate, Arm Liner, Steel Ball, and etc.

Hyton's casting wear parts can suit lots of world famous crushing equipment brand suach as: Nordberg, Sandvik, Telsmith, Terex, Symons, Trio, Kleeman, Extec and etc.

hp

Cone Crusher Spare Parts-Cone Concave Advantage and Features

1. Use: Wear parts for crushers in the quarry, mining, cement, aggregate, recycling, shredding and demolition fields etc.

2. High manganese steel material specifications: Mn14Cr2, Mn18Cr2, Mn22Cr2.

3. High manganese steel hardness: HB180-220.

4. High manganese steel tensile strength: ≥685Mpa.

5. High chromium material specifiations: CBCr15. CBCr20. CBCr26.

6. High chromium hardness: CBCr15≥56HRC. CBCr20≥58HRC. CBCr26≥60HRC.

7. More than 20 years of experiences on casting and producing crushers.

8. Sophisticated processing equipment and completed inspection facility.

9. Strong wear resistance and long life span, can be used in harsh environment and serious abrasion.

Material C Si Mn Cr Mo Ni Cu S P
ZGMn14Cr2 0.9-1.3 0.3-1.0 11.0-14.0 1.5-2.5 / / / ≤0.04 ≤0.06
ZGMn18Cr2 1.1-1.5 ≤0.8 16.5-19.0 1.5-2.5 / / / ≤0.04 ≤0.07
ZGMn22Cr2 1.1-1.4 ≤0.8 20.0-22.0 1.5-2.5 / / / ≤0.04 ≤0.07
CBCr15 2.0-3.0 <1.0 0.5-2.0 12.0-18.0 0.5-2.5 0-1.0 0-1.2 <0.06 <0.10
CBCr20 2.0-3.0 <1.0 0.5-2.0 18.0-23.0 0.5-2.5 0-1.5 0.8-1.2 <0.06 <0.10
CBCr26 3.1-3.5 0.4-0.9 1.0-1.3 23.0-27.5 0.5-2.5 0-1.5 0.8-1.2 ≤0.04 ≤0.05

Spare parts of Hyton mainly suit the cone crusher model under below

GP100 GP200 GP300 GP500 GP11F GP220 GP330 GP550 GP100S GP200S GP300S GP500S GP7

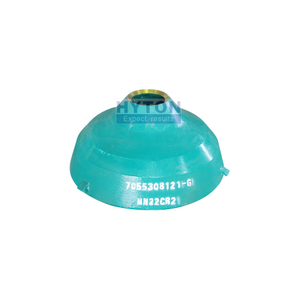

HP100 HP200 HP300 HP400 HP500 HP700 HP800 HP3 HP4 HP5 HP6

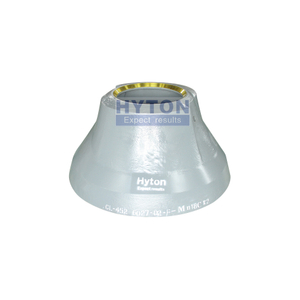

CH420 CH430 CH440 CH550 CH660 CH870 CH840 CH880 CH890 CH895 CS420 CS430 CS440 CS660

2ft , 3ft , 4ft, 4 1/4ft, 5 1/2ft, 7ft,

Terex: C-1540 C-1540R C-1545 C-1545P C-1550 C-1550P C-1554

Telsmith: T300 T400 T500 T900  36 S & FC  48 S & FC  52 S & FC  57 S & FC  66 S & FC 38 SBS  44 SBS  52 SBS  57 SBS  68 SBS

TP260 TP350 TP450 TP600 TP900

未标题-4

未标题-5

Production Process

微信图片

1)  Name: Concave & Mantle

2)  Material: High Manganese / Carbon Steel / Low alloy steel

3)  Use: Replacement parts for Cone crusher

4)  Heat Treatment: Quenching, Tempering, Annealing, Nomoralizing

5)  Quality Assurance Report: Chemical Composition Report, Mechanical Properties Report, MT Report, UT Report, Heat Treatment Report, Dimensions Report


Company Profile

Hyton(Jiangsu) Mechnical Equipment Co.ltd is a leading enterprise in the large-scale engineering machinery wear-resisting casting industry in Jiangsu Province, Nantong City. As a new high-tech enterprise professionally manufacturing wear-resisting casting product Which specialized in manufacturing and research of High manganese and high Chrome wear parts. After ten years of rapid development, Hyton(Jiangsu) has now become a renowned enterprise in China's wear-resisting casting industry, it has become one of the famous supplier of wear parts for crusher and concrete mixer. Established in June 2004, the company is now undertaking a National Torch Program Project, and five of its patented products have been honored as the "New High-Tech Product" of Jiangsu Province two of which have been listed into the New Products Program of Jiangsu Province.The company's wear-resisting casting products have been praised to be the "Famous-brand Products of Jiangsu Province", the company has been appraised as a "Trustworthy" unit of Jiangsu Province for many consecutive years.

5O8NI0UDQA7273V4CT


Packing and Shipping

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


After goods well packaged, we need only 1 day ship goods to shanghai port, which means that most of the spare parts you bought from Hyton, it will get your port within 45 days all around the world if shipment by sea.

packing and shipping

未标题-9副本


Our Advantages

1) Your inquiry related to our product & price will be rapidly.

2)  Well trained & experienced staff are to answer all your inquiries in English of course.

3) Your business relationship with us will be confidential to any third party.

4)  One stop purchase service: extensive range of products for qualified offering.

5) We response to client's inquiry within 12 hours.

反馈图


FAQ

1. Q: Are you trading company or manufacturer?
A: We are a steel casting foundry and specialized in this industry for more than 3 decades years. We equip with complete facilities, all production process from manufacturing to testing is finished in our own foundry.

2. Q: How long is your delivery time?
A: Our lead time is generally 30 days for existing patterns, 55 days for new patterns. Exact time to be finalized on receiving of finalized order.

3. Q: What kind of products do you make?
A: We specialize in mining machinery parts, excavator attachments such as jaw plates, concaves, mantles, bowl liners, mill liners, shredder hammers, grates, top gids, caps, bucket teeth and more.

4. Q: Do you offer the supporting service for technology and engineering?
A: Yes, our engineering team can measure products at mining site, they also can make more reasonable design for the crusher parts.

5. Q: How do you deal with quality problem?
A: We adhere to "Be honest people create perfect product" development principle since our foundation. Every single product is strictly checked and well packed before delivery. If something goes wrong when you use our products, please send us photos of the wear part and the machine. This will help us to identify where the problem is. If it is a quality problem, we will compensate you and do something correspondingly to avoid the same problem next time. If the problem is caused by misuse, we will provide our technical advice for your reference.

6. Q: What is the best route to come to visting your plant?
A: Shanghai to Nantong station around one hour by high speed train. We will pick you up at the high speed train station.
