| Quantity: | |
|---|---|
Customized
HYTON
84749000

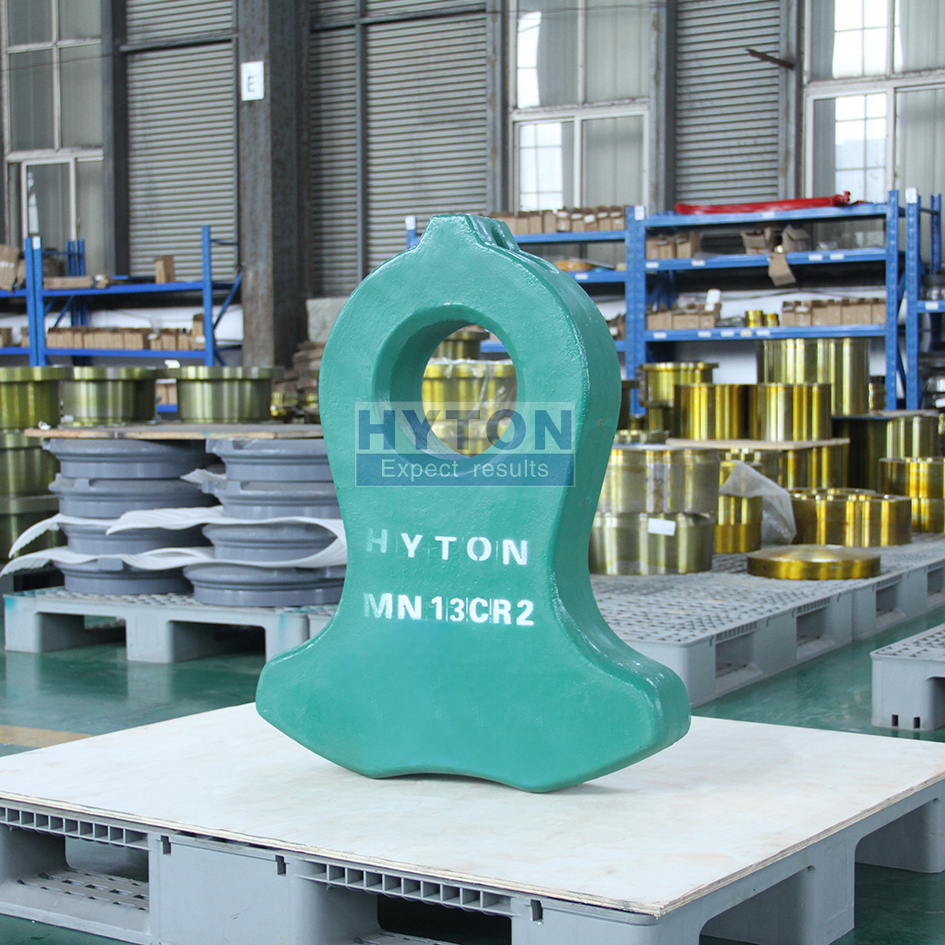

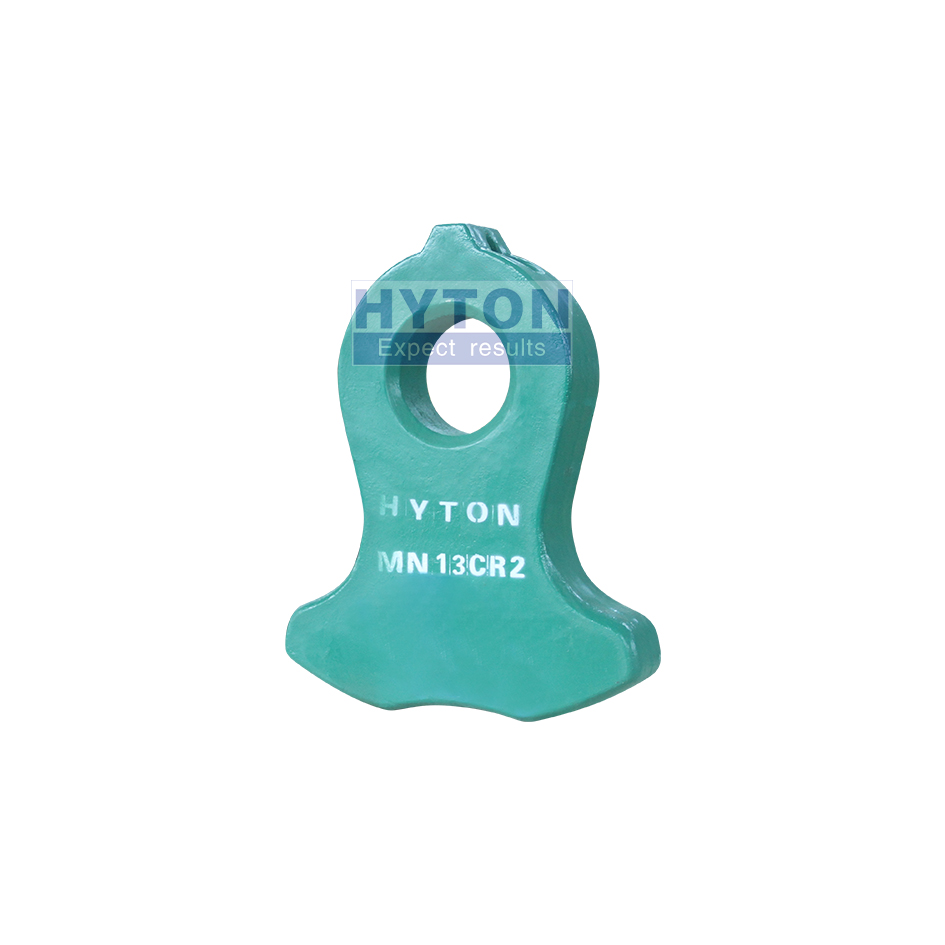

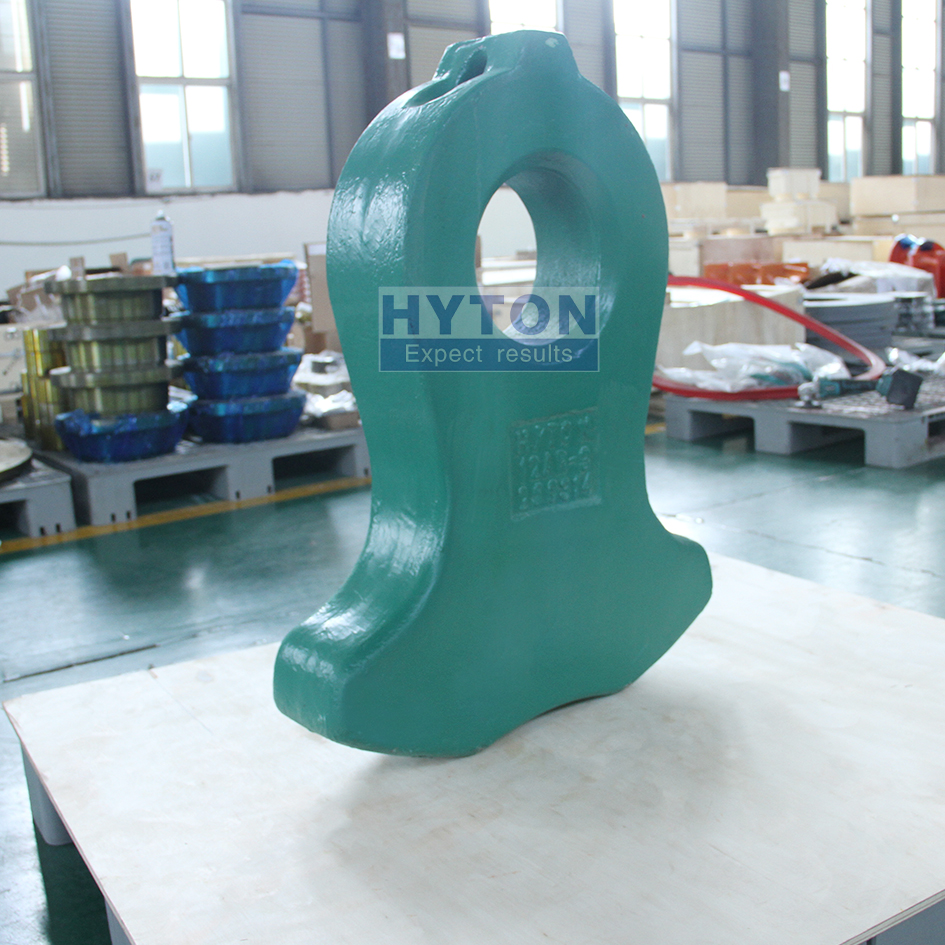

Customized Material Mn13Cr2 Wear-resistant Hammer Head HT-12AR-3 for Mining Machine Hammer Crusher
Product Description
Hyton Provide One-stop Wear&Spare Parts Solution for Hammer Crusher, mainly include: High Manganese Hammer Heads, Alloy Steel Hammer Heads, TIC Inserts Hammer Heads and other customer’s custom parts.
| Product Name | Mn13Cr2 Hammer Head |
| Material | Mn13Cr2, Mn18Cr2, Mn22Cr2, 30CrNiMo and 45CrNiMo, low alloy steel, Mn14Cr2, Mn18Cr2 with tungsten carbide insert and other custom materials |
| Hardness | 50-64 HRC |
| Molding Process | Water-glass sand casting or lost form casting |
| Heat Treatment | Anneal, Quenching, Tempering |
| Payment | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Lead Time | 4 weeks |
Chemical Component
High Manganese Hammer Heads
Our manganese hammer head span life can 50% more than other suppliers. The manganese materials mainly are: Mn13Cr2, Mn18Cr2, Mn22Cr2. Compared with low alloy steel castings, manganese hammer head has a very high resistance to crack propagation.
Mn13Cr2 | ||||||
Material % | C | Si | Mn | Cr | P | S |
1.05-1.35 | 0.40-0.90 | 11.50-14.50 | 1.50-2.50 | ≤0.07 | ≤0.07 | |
Mn18Cr2 | ||||||
Material % | C | Si | Mn | Cr | P | S |
1.20-1.35 | 0.40-0.90 | 16.00-19.00 | 1.50-2.50 | ≤0.07 | ≤0.07 | |
Mn22Cr2 | ||||||
Material % | C | Si | Mn | Cr | P | S |
1.30-1.50 | 0.40-0.90 | 19.50-22.50 | 2.00-3.00 | ≤0.07 | ≤0.07 | |
Alloy Steel Hammer Head
We also can cast a hammer head by 30CrNiMo and 45CrNiMo alloy steel. Under this material, the hammer head can get different hardness: The bar of the hammer head’s hardness around: 35-40 HRC, The working area of the hammer head’s hardness around 52-60 HRC. Due to different hardness, the hammer head can get more span life.
30CrNiMo | |||||||
C | Si | Mn | P | S | Cr | Mo | Ni |
0.26-0.34 | 0.4 | 0.3-0.6 | 0.035 | 0.035 | 1.8-2.2 | 0.3-0.5 | 1.8-2.2 |
45CrNiMo | ||||||||
C | Si | Mn | P | S | Cr | Mo | Ni | V |
0.44-0.49 | 0.15-0.35 | 0.6-0.90 | ≤0.015 | ≤0.020 | 0.90-1.20 | 0.90-1.10 | 0.40-0.70 | 0.05-0.15 |
Low Alloy Steel Hammer Head
Hyton's low alloy steel hammer head has the advantages of high hardness at the working end, good wear resistance, low hardness at the installation end, good impact toughness, non fracture during use, and long span life. The hardness of the installation end of the hammer reaches 37-43, and the hardness of the working end reaches 54-61.
Low Alloy Steel | ||||||||||
C | Si | Mn | P | S | Cr | Mo | Ni | V | AI | Zr |
0.44-0.58 | 1.0-1.5 | 0.3-0.8 | ≤0.015 | ≤0.015 | 0.80-1.20 | 0.30-0.60 | 0.80-1.20 | 0.10-0.15 | 0.01-0.035 | 0.02-0.04 |
TIC InsertsHammer Head
Hyton offers design and wears life analysis with three common alloys for improved wear life: Mn14Cr2, Mn18Cr2 with tungsten carbide insert. Under this material, TIC inserts hammer head can get better metallurgy for longer wear life and significant cost savings. Its span life can be 2.5-3 times than normal manganese hammer head.
Our Advantages
Extended tool life thanks to an excellent wear resistance
Proven efficiency and reliability thanks to a good ratio of hardness and toughness.
Durability
The special alloy is harder in key areas to help maintain the original shape of the hammer for as long as possible, resulting in a longer hammer life.
Efficiency
Our alloy hammer is more forgiving in the right spots – offering the hardness of the alloy and better tolerance against non-shreddables. They undergo a special heat treatment that makes them gentle on the hammer pins but hard on scrap.
Reliability
Our alloy hammer requires less frequent maintenance intervals and delivers a lower cost- per-ton at the end of the life cycle.
Company Profile
Hyton(Jiangsu) Mechnical Equipment Co.ltd is a leading enterprise in the large-scale engineering machinery wear-resisting casting industry in Jiangsu Province, Nantong City. As a new high-tech enterprise professionally manufacturing wear-resisting casting product Which specialized in manufacturing and research of High manganese and high Chrome wear parts. After ten years of rapid development, Hyton(Jiangsu) has now become a renowned enterprise in China's wear-resisting casting industry, it has become one of the famous supplier of wear parts for crusher and concrete mixer. Established in June 2004, the company is now undertaking a National Torch Program Project, and five of its patented products have been honored as the "New High-Tech Product" of Jiangsu Province two of which have been listed into the New Products Program of Jiangsu Province.The company's wear-resisting casting products have been praised to be the "Famous-brand Products of Jiangsu Province", the company has been appraised as a "Trustworthy" unit of Jiangsu Province for many consecutive years.
Located in the New Material Industrial Park, Nantong City Jiangsu Province, the company covers an area of 90 Square kilometer and currently has more than 300 employees. The company is equipped with lost molding production line and lost casting production line imported from FATA Company in Italy, Inductotherm Vacuum Degassing Furnace(USA), Foseco Casting Technology(U.K), SPECTRO Spectrometer (Germany), the currently most advanced ZZ418A vertical parting flaskless shoot squeeze molding machine Disa production line, horizontal molding line and self-control lost casting production line in China, the most advanced sand treatment system in China. With three gas trolley heat treatment furnace and pusher-type furnace full-automatic heat treatment production lines, the company can annually produce 30,000 tons of various wear-resisting castings.
Product Process

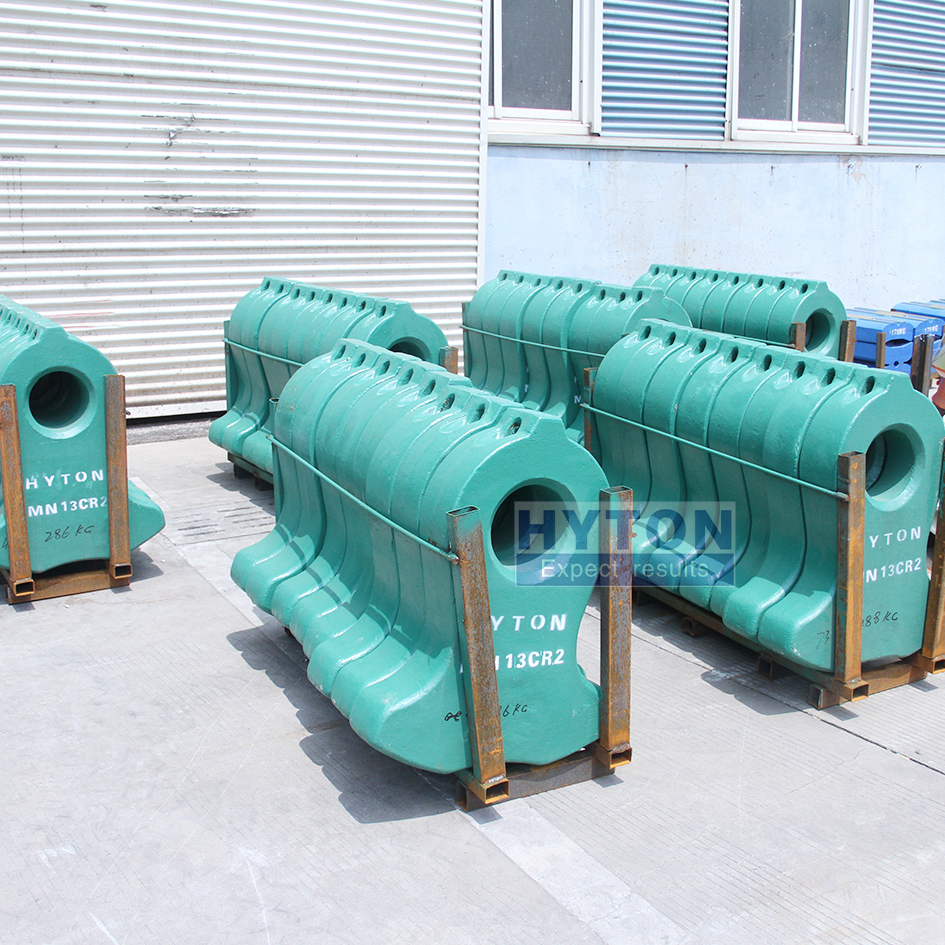

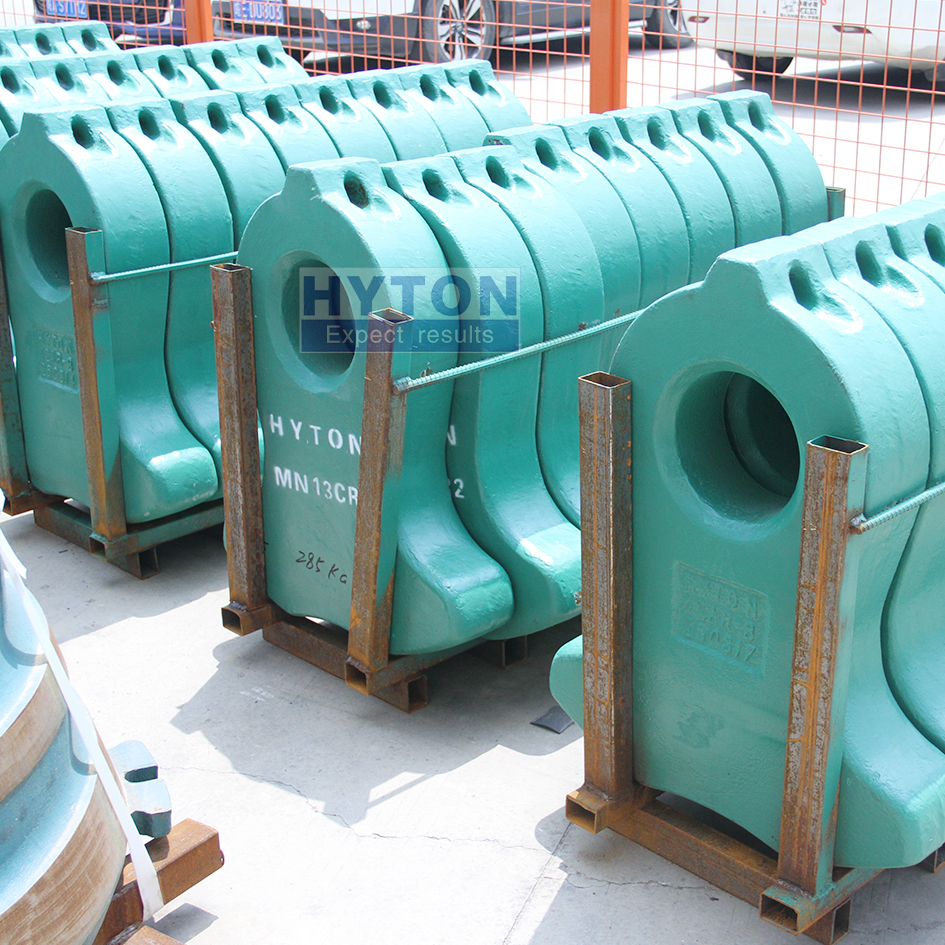

Packing and shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
After goods well packaged, we need only 1 day ship goods to shanghai port, which means that most of the spare parts you bought from Hyton, it will get your port within 45 days all around the world if shipment by sea.
Our Advantages
1. Our hammer heads have been tried, tested, and installed in many shredder locations around the world.
2. We have many rich experience engineers who can help you maximize your parts span life and minimize your purchase cost.
3. We supply various material choices for you, no matter manganese steel or alloy steel.
4. Your inquiry related to our product & price will be rapidly.
5. Well trained & experienced staff are to answer all your inquiries in English of course.
6. Your business relationship with us will be confidential to any third party.
7. One stop purchase service: extensive range of products for qualified offering
8. We response to client's inquiry within 12 hours.
FAQ
1.Q: What kind of products do you make?
A: We specialize in Hammer Crusher Wear&Spare Parts, such as High Manganese Hammer Heads, Alloy Steel Hammer Heads, TIC Inserts Hammer Headsand other customer’s custom parts.
2.Q: What kind of material do you offer?
A: High Manganese Steel, Alloy Steel, High Manganese Steel with tungsten carbide insert and other customer’s custom materials.
3.Q: What is your time of delivery?
A: Our lead time is generally 2-4 weeks for casting parts and shipping time is about 2-4 weeks. 4.Q: How to test your quality?
A: We will show you material inspection and measurement inspection after finishing the goods, at the same time, we will give you the life time guarantee letter after shipping the goods. The best suggestion to all the customer who may interest our product-Test 2 set first, all the good business relationship all from test and trust.
