SG60-89
HYTON
84749000

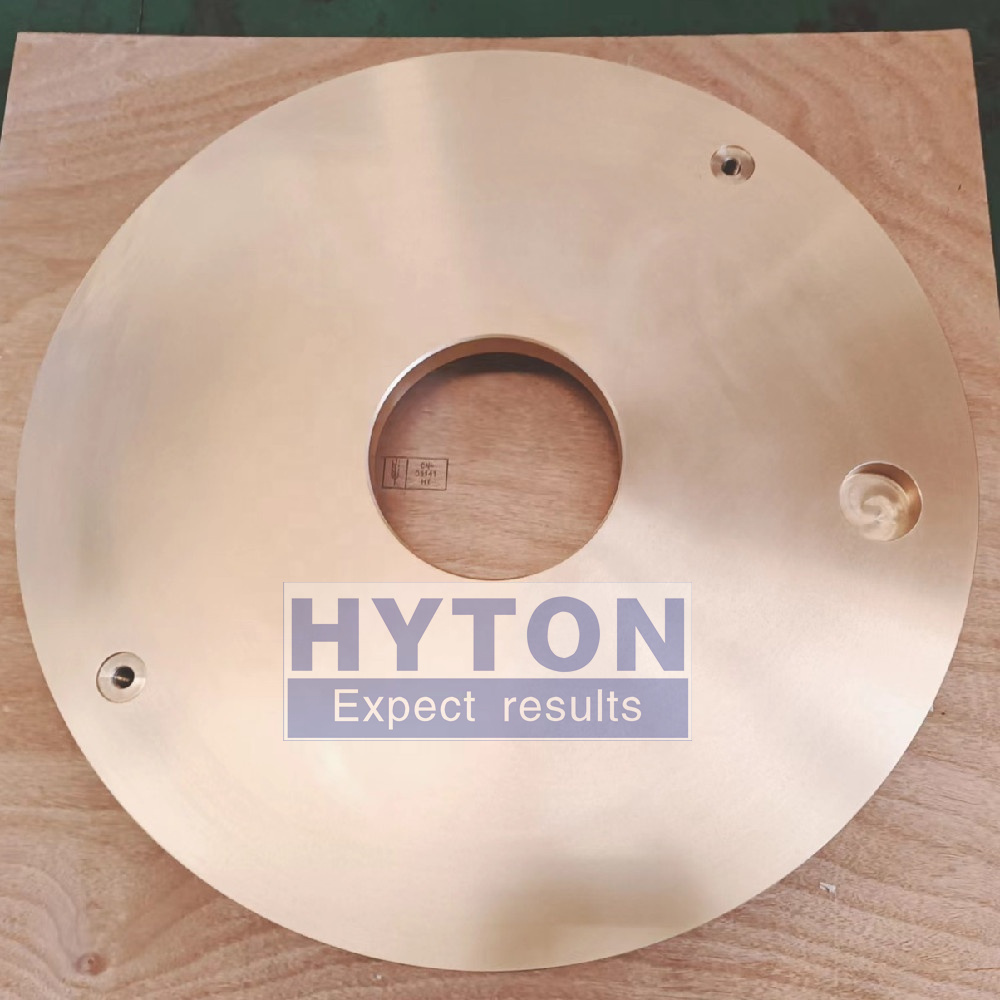

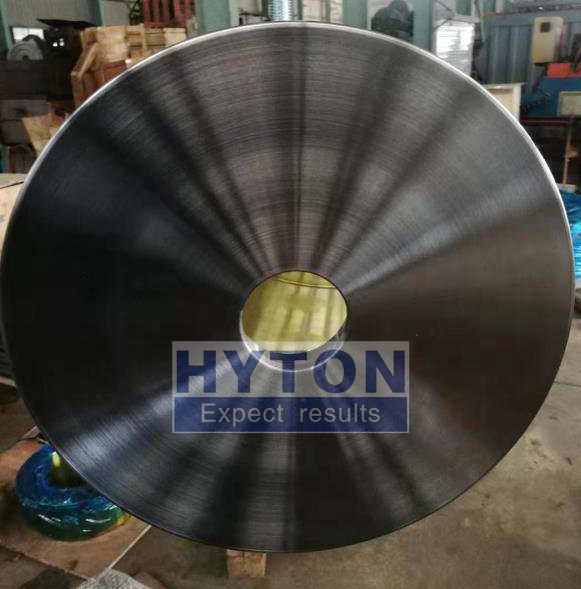

Spare Parts Main Shaft Step Apply to Metso SG60-89 Gyratory Crusher
Product Description
The gyratory crusher runs driven by the motor and the movement of its eccentric bushing is completed through the belt pulley and the cone gear. As the eccentric bushing moves, the crushing cone device does the spinning and pendulum motion around the crushing center. In the crushing cavity, the materials are impacted, compressed and warped, and then the crushing cone and the fixed cone hit each other continuously, thus crushing the materials. Later the weight of the materials forces themselves to flow from the bottom of the crusher. Hyton supply the wear and spare parts for gyratory crusher mainly include - Head Assy, Upper Shell, Lower Shell, Bowl Assy, Ecc Assy, Counter Shaft Assy, Counter Weight Assy, Feeder Assy, Main Shaft, Spider Liner, Head Nut, Spider Bearing, Scraper, Spider Cap, Bronze Bushings and etc.
Advantages of Gyratory Crusher
(1) The structure is simple and reasonable, and the operation cost is low. Using the principle of stone beating, the wear is small.
(2) High crushing rate and energy saving.
(3) It has the function of fine grinding and rough grinding.
(4) The water content of the material has little influence and can reach about 8%.
(5) Work noise is less than 75 decibels (db level) and dust pollution is less.
(6) Suitable for crushing medium and super hard materials.
(7) The product is cuboid with high bulk density and minimal iron pollution.
(8) The impeller self-lining wear is small and maintenance is convenient.
Spare parts of Hyton mainly suit the cone crusher model under below
SG42-65 • SG50-65 • SG54-75 • SG62-75 • SG60-89 • SG60-110
CG650 • CG820 • CG840 • CG850 • CG880
Gyratory Crusher Spare Parts Model | |||
HT-17-301-712-001 | HT-17-202-513-801 | HT-17-202-619-001 | HT-17-106-722-001 |
HT-17-301-723-001 | HT-17-303-531-501 | HT-07-344-282-002 | HT-17-106-722-002 |
HT-17-303-213-002 | HT-17-303-538-501 | HT-07-350-278-001 | HT-17-107-476-002 |
HT-SN590315 | HT-17-303-540-501 | HT-07-449-494-002 | HT-17-402-988-803 |
HT-17-300-694-001 | HT-17-303-541-501 | HT-07-449-494-003 | HT-17-301-740-501 |
HT-17-301-737-001 | HT-SN565488 | HT-17-401-591-001 | HT-17-303-930-501 |
HT-17-301-760-001 | HT-17-303-532-501 | HT-07-446-217-001 | HT-17-402-465-401 |
HT-17-302-053-001 | HT-17-303-539-501 | HT-07-446-212-002 | HT-SN130846 |
HT-17-303-214-001 | HT-17-303-539-501 | HT-07-446-212-003 | HT-17-107-551-006 |
HT-SN374007 | HT-17-303-542-501 | HT-17-402-819-001 | |
HT-17-303-214-001 | HT-SN332847 | HT-SN193998 | |
Company Profile
Hyton(Jiangsu) Mechnical Equipment Co.ltd is a leading enterprise in the large-scale engineering machinery wear-resisting casting industry in Jiangsu Province, Nantong City. As a new high-tech enterprise professionally manufacturing wear-resisting casting product Which specialized in manufacturing and research of High manganese and high Chrome wear parts. After ten years of rapid development, Hyton(Jiangsu) has now become a renowned enterprise in China's wear-resisting casting industry, it has become one of the famous supplier of wear parts for crusher and concrete mixer. Established in June 2004, the company is now undertaking a National Torch Program Project, and five of its patented products have been honored as the "New High-Tech Product" of Jiangsu Province two of which have been listed into the New Products Program of Jiangsu Province.The company's wear-resisting casting products have been praised to be the "Famous-brand Products of Jiangsu Province", the company has been appraised as a "Trustworthy" unit of Jiangsu Province for many consecutive years.
Located in the New Material Industrial Park, Nantong City Jiangsu Province, the company covers an area of 90 Square kilometer and currently has more than 300 employees. The company is equipped with lost molding production line and lost casting production line imported from FATA Company in Italy, Inductotherm Vacuum Degassing Furnace(USA), Foseco Casting Technology(U.K), SPECTRO Spectrometer (Germany), the currently most advanced ZZ418A vertical parting flaskless shoot squeeze molding machine Disa production line, horizontal molding line and self-control lost casting production line in China, the most advanced sand treatment system in China. With three gas trolley heat treatment furnace and pusher-type furnace full-automatic heat treatment production lines, the company can annually produce 30,000 tons of various wear-resisting castings.
Packing and shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
After goods well packaged, we need only 1 day ship goods to shanghai port, which means that most of the spare parts you bought from Hyton, it will get your port within 45 days all around the world if shipment by sea.
Our Advantages
1. All of the castings finish must go along with the Metal Inspection and Dimension Inspection.
2. Hyton will always have the responsibility of all the products from hyton in the market, will service a "24+3"service rules (After get the request from customer, the after-service department of hyton myst supply the feedback solution within 24 hours, and must get Consistent scheme amd solve the promblem within 3 days .
3. Hyton have a professional after-service team can promise service all over the world, service including the Installation Guide, Measurement at site, Inspection and etc.
FAQ
1. Q: What advantages of your products?
A: First, our products are made of high manganese steel material Mn18Cr2, which has high ductility and strength.
Second, our products have High Chromium Alloy Insert inserts, it can improve 30%-200% service life of your products.
Third, we can also provide other insert materials to increase the service life of your products, such as Titanium Carbide Insert, ceramics insert and etc.
Welcome you to contact us to learn more.
2. Q: How long is your lead time?
A: Our lead time is generally 30 days for existing patterns, 45 days for new patterns. Exact time to be finalized on receiving of finalized order.
3. Q: What kind of products do you make?
A: We specialize in mining machinery parts, crusher wear and spare parts, metallurgical equipment spare parts such as eccentric assy, gear, spider rim liner, jaw plates, concaves, mantles, bowl liners, mill liners, shredder hammers, rolls, and more. They can suit lots of world famous crushing equipment brand such as: Nordberg, Sandvik, Telsmith, Terex, Symons, Trio, Kleeman, Extec and etc. We also provide various product customization services, you can contact us to discuss more.
4. Q: How do you deal with quality problem?
A: We adhere to "Be honest people create perfect product" development principle since our foundation. Every single product is strictly checked and well packed before delivery. If something goes wrong when you use our products, please send us photos of the wear part and the machine. This will help us to identify where the problem is. If it is a quality problem, we will compensate you and do something correspondingly to avoid the same problem next time. If the problem is caused by misuse, we will provide our technical advice for your reference.
