1. Introduction

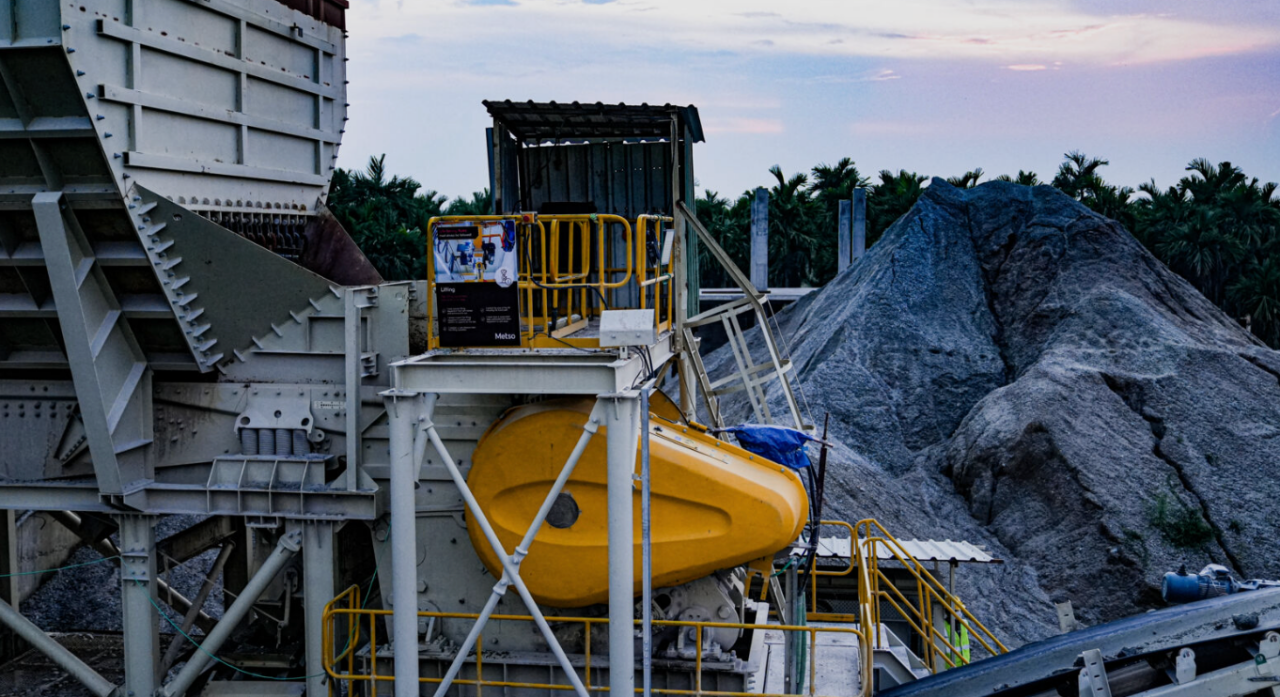

In a C series jaw crusher, the pitman assembly is the core component that determines performance, stability, and service life.

It is not just a structural part, but the key element that converts rotational energy into crushing motion while carrying complex cyclic loads.

2. Function and Load Characteristics

The pitman converts eccentric shaft rotation into the reciprocating motion of the movable jaw and transfers crushing force to the material.

Power path:
Motor → Flywheel → Eccentric Shaft → Pitman → Movable Jaw → Material

During operation, the pitman is subjected to:

• Bending

• Compression

• Shear

• High-cycle fatigue loading

This makes it one of the most critical and heavily loaded components in the crusher.

3. Structural Design and Motion

The pitman is designed to ensure stable stress distribution under cyclic loading.

Key areas include:

• Eccentric bore (critical stress zone)

• Jaw connection interface

• Toggle system interface

• Reinforcement ribs

Its geometry defines stroke, motion trajectory, and crushing efficiency.

Engineering trade-off:

• Larger stroke → higher capacity

• Larger stroke → higher dynamic stress

Proper design balances throughput and fatigue life.

4. Material and Manufacturing Strategy (Core Difference)

The reliability of the pitman depends primarily on material and process control rather than structure alone.

Mainstream solution: Cast Steel (G20Mn5) + Heat Treatment

The pitman is typically made of high-strength cast steel such as G20Mn5, combined with controlled heat treatment processes:

• Quenching and tempering to improve toughness and resistance to impact

• Local hardening (if required) to enhance wear and fatigue resistance at critical areas

The objective is to improve fatigue life and dimensional stability under cyclic loading.

In practice, performance should be evaluated based on:

• Fatigue resistance

• Internal quality consistency

• Long-term reliability

This approach is widely proven in heavy-duty applications.

The goal is not higher strength, but: fatigue resistance + controlled wear + stable long-term performance

5. Failure Mechanism

Pitman failure is not caused by a single overload event, but by fatigue accumulation under cyclic stress.

Typical failure areas include:

• Eccentric bore

• Structural transitions

• Stress concentration zones

6. Conclusion

The pitman assembly is the core component that defines:

• Crushing efficiency

• Operational stability

• Lifecycle cost

Its performance depends on:

• Material system

• Structural design

• Manufacturing quality

Ultimately, pitman reliability is determined by fatigue performance, not just strength.

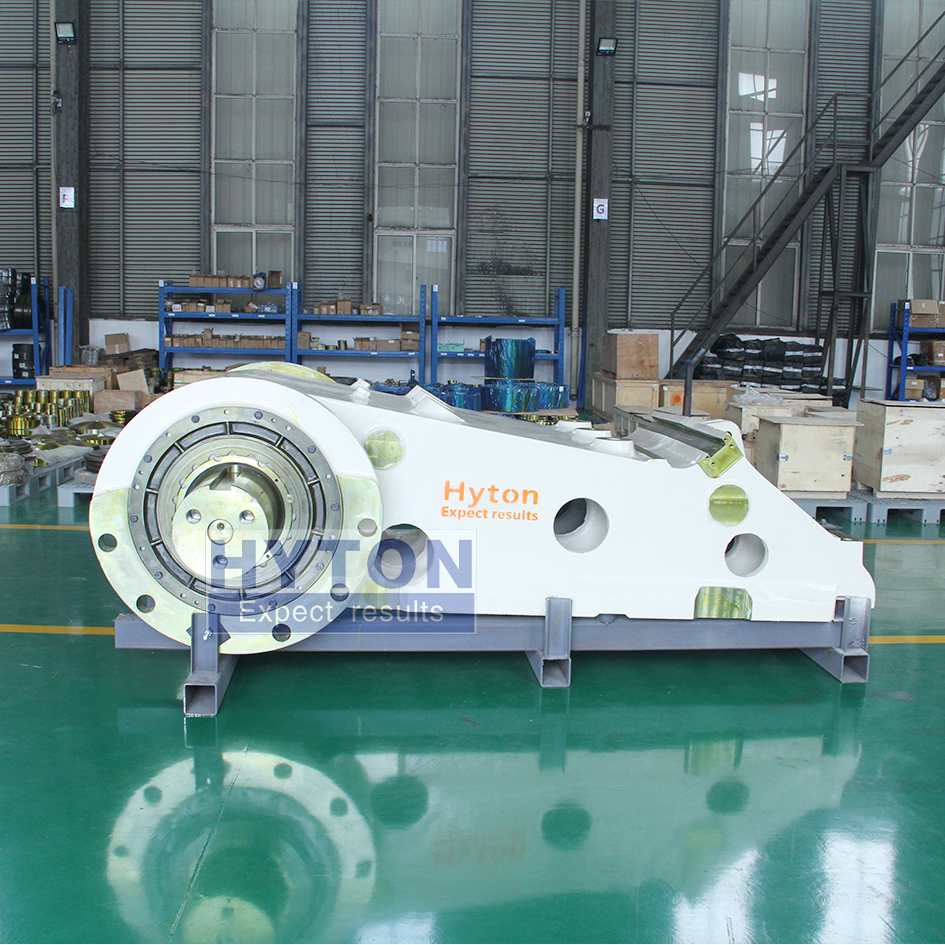

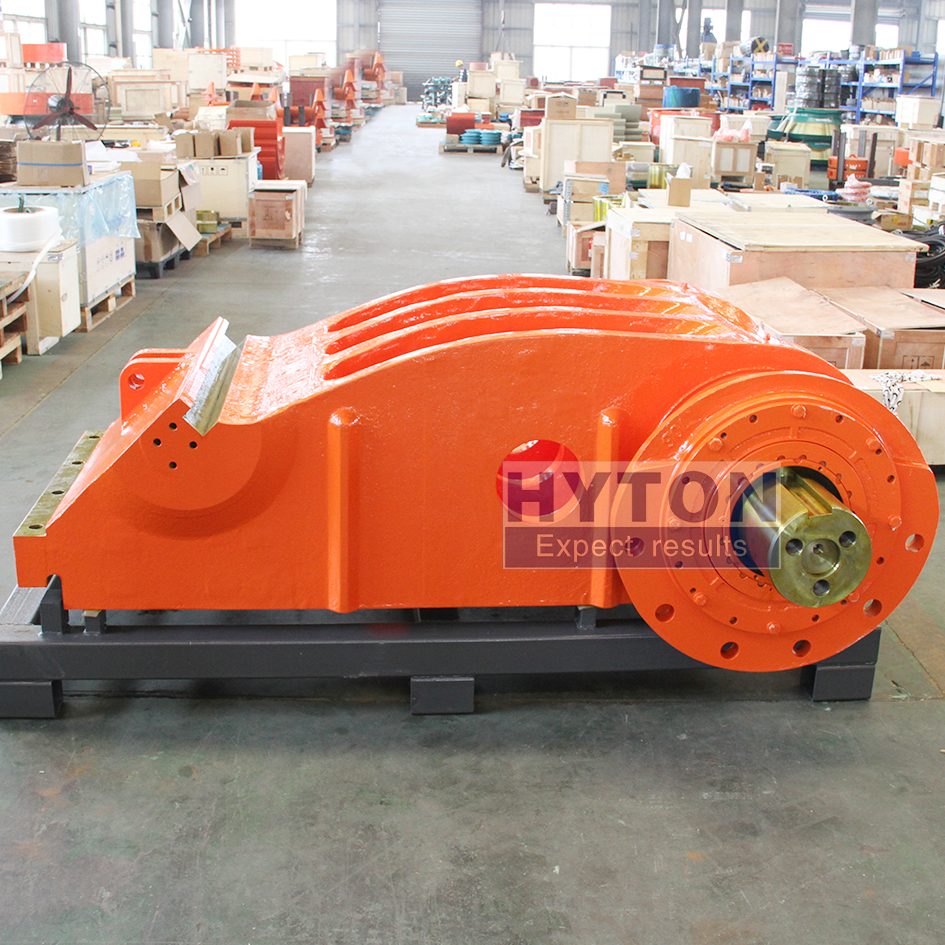

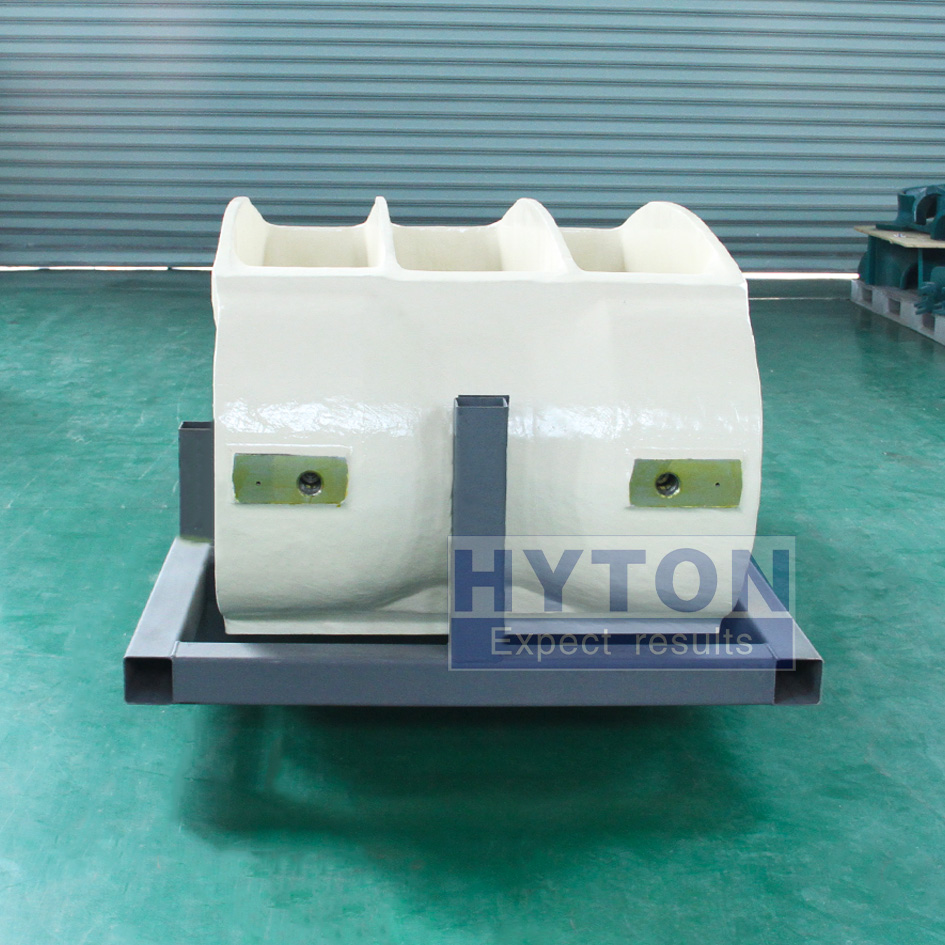

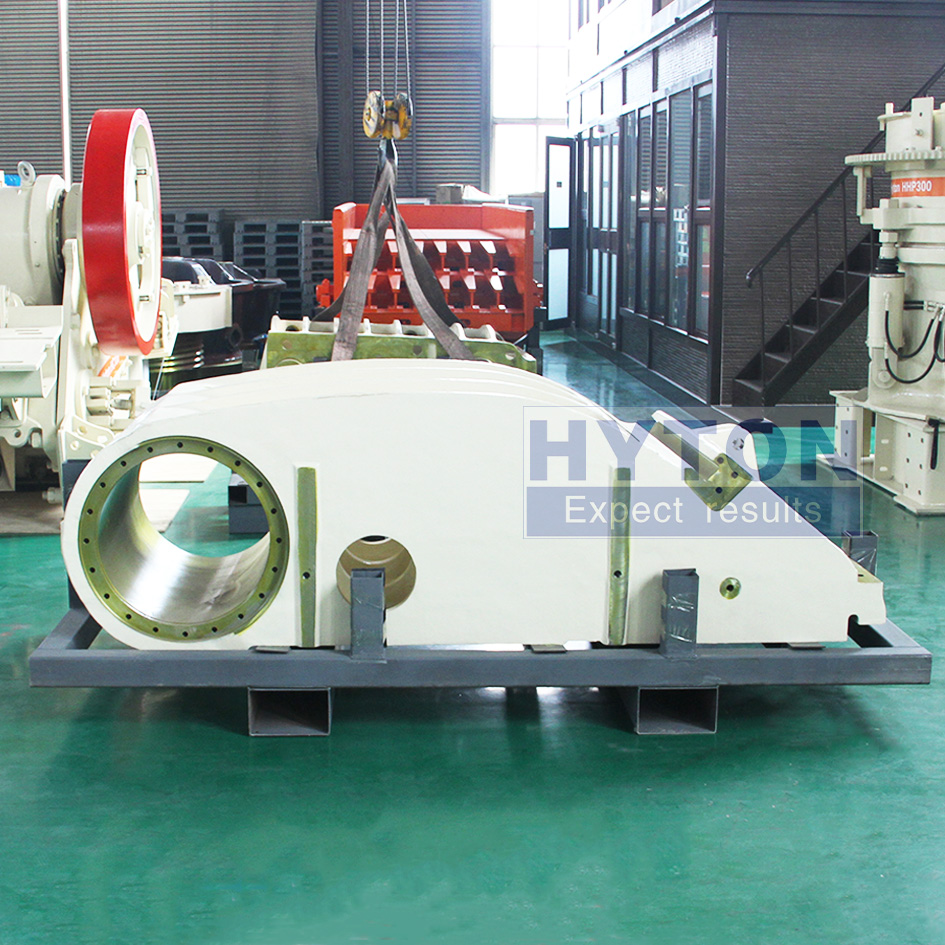

Hyton provides one-stop wear and spare parts solution for C series jaw crushers. Here are the specific part numbers for the C series pitman assembly. Please refer to them：
