1. The Critical Role of Rotor Assembly in CV Series VSI Crushers

The rotor assembly is the core component of CV Series VSI crushers, converting motor power into high-speed impact energy. Unlike compression crushers, VSI crushers use centrifugal force to accelerate material through the rotor, enabling efficient rock-on-rock or rock-on-iron crushing. Therefore, rotor quality directly affects crushing performance, product shape, equipment stability, and maintenance cost.

2. High-Speed Operation Requires Strict Engineering Control

VSI rotor assemblies operate under extremely high rotational speeds, where even minor manufacturing deviations can affect rotor balance and operational stability. Therefore, strict control of machining accuracy, dimensional tolerance, and weight consistency is essential to ensure reliable performance.

3. Material Selection: Balancing Wear Resistance and Impact Toughness

Material selection is the foundation of rotor assembly performance.

Under continuous impact and abrasive working conditions, rotor components must achieve an ideal balance between wear resistance, structural strength, and impact toughness.

For high-chrome wear components, chemical composition and hardness control are key factors affecting service life. Alloy elements such as molybdenum (Mo) and nickel (Ni) are commonly applied to optimize material performance and improve the balance between wear resistance and toughness. Through proper heat treatment, wear components can typically achieve stable hardness levels around 58–60 HRC, depending on application requirements.

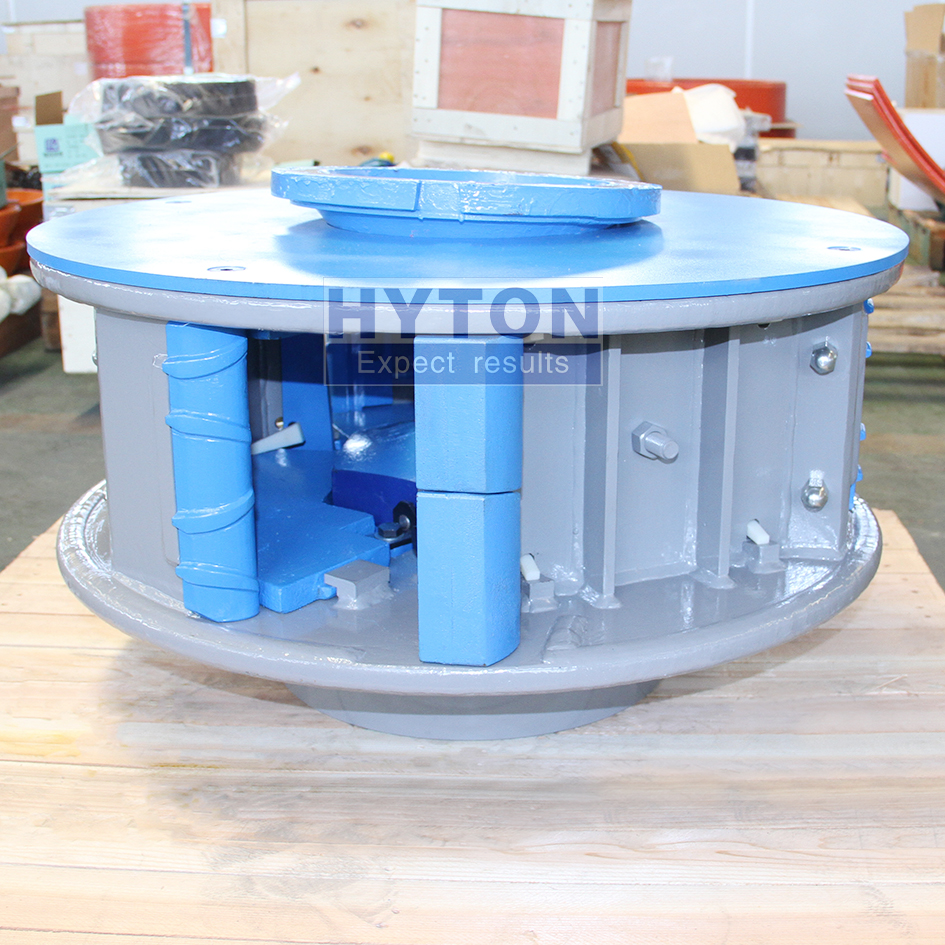

4. Key Wear Components of CV Rotor Assembly

(1) Rotor Tips

Rotor tips are the primary impact components in the rotor assembly.

A composite structure is commonly adopted, using a high-strength steel base such as 40Cr combined with tungsten carbide inserts in high-impact areas.

This design provides:

· Excellent impact resistance from the steel base

· Superior wear resistance from tungsten carbide

· Extended service life under abrasive conditions

(2) Top and Bottom Wear Plates

Wear plates protect the rotor body from direct material impact.

Standard materials such as Q345B are commonly used, while upgraded wear-resistant materials such as NM450 (similar performance level to Hardox 450) can be selected for more demanding applications.

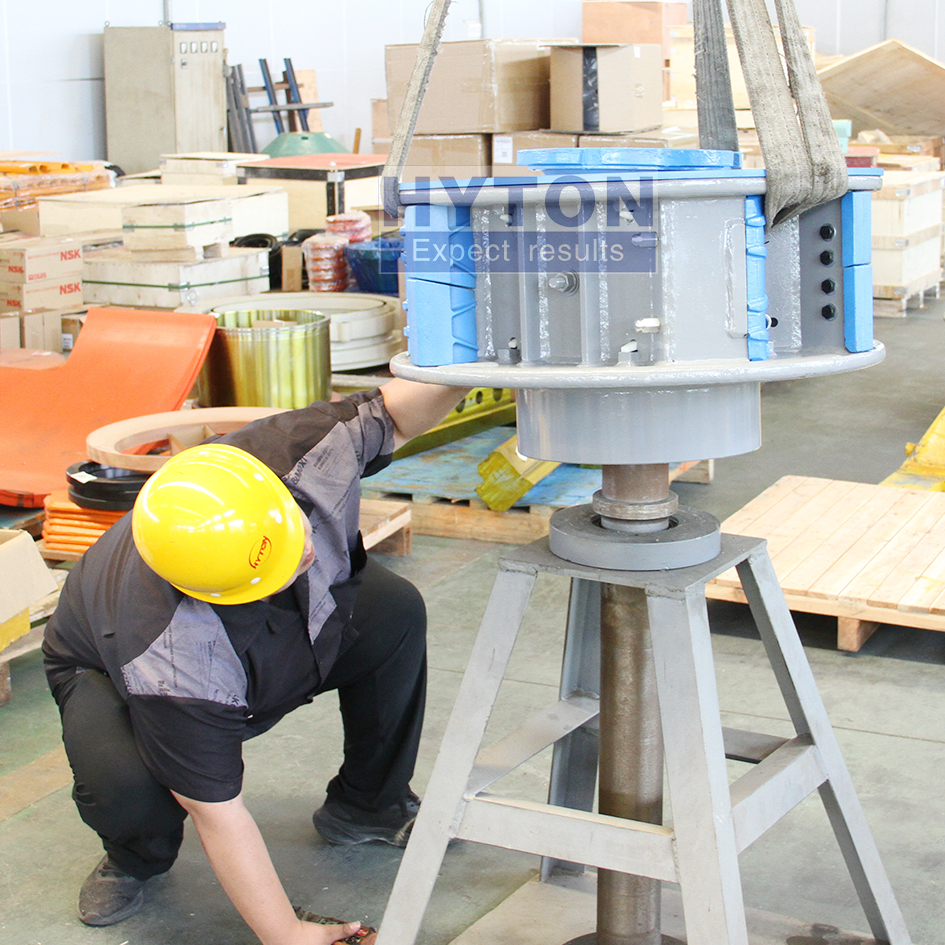

5. Dynamic Balancing and Assembly Reliability

Dynamic balancing is one of the most important processes to guarantee stable rotor operation.

A properly balanced rotor helps reduce vibration, protect bearings and drive components, and maintain consistent crushing performance.

In addition, precise assembly, accurate component matching, and reliable welding quality ensure structural integrity under continuous impact loads.

6. A Systematic Engineering Approach for Long-Term Performance

A reliable CV Series VSI rotor assembly is the result of comprehensive engineering control, combining material technology, precision manufacturing, dynamic balancing, and assembly expertise.

Under high-speed crushing conditions, every detail matters. Through strict quality control and engineering optimization, CV Series rotor assemblies deliver improved stability, extended service life, and reliable performance for demanding crushing applications.
