1. Introduction: Why the Rotor Determines Everything

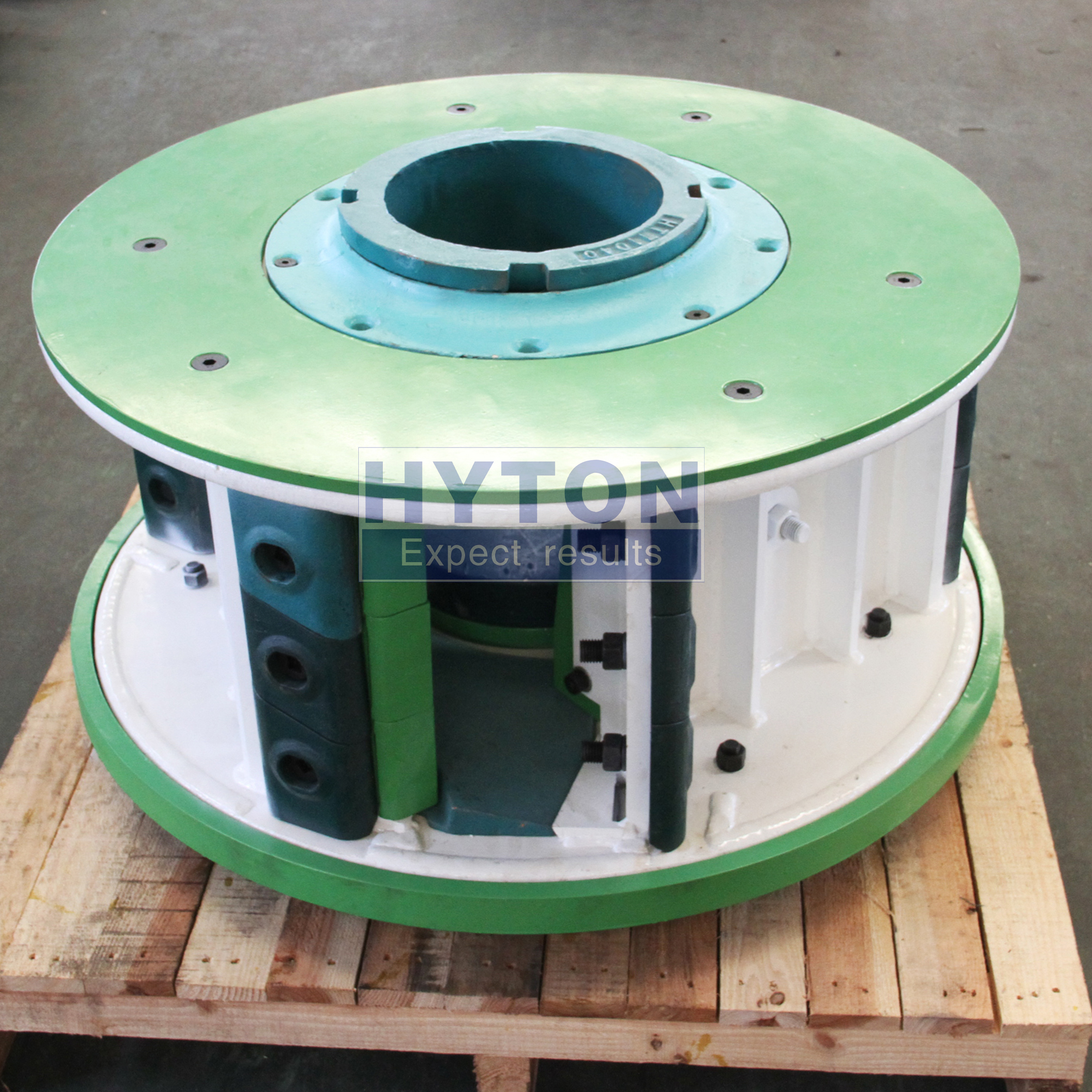

In Barmac VSI crushers, the rotor assembly is the core component that converts motor power into high-speed kinetic energy.

Unlike jaw or cone crushers that rely on compressive crushing, VSI crushers use high-speed rotor rotation to accelerate and discharge material, enabling 'rock-on-rock' or 'rock-on-iron' crushing.

Therefore, the design and manufacturing quality of the rotor directly determine equipment stability, product quality, and operating cost.

2. Key Challenges Under High-Speed Conditions

VSI rotors operate at high rotational speeds, where centrifugal forces are extremely high, any weight deviation is significantly amplified, and even minor errors can cause vibration.

In essence, the rotor is not a conventional structural component, but a high-speed system highly sensitive to balance.

3. Material Selection: Foundation of Wear Resistance

The performance of the rotor assembly starts with material selection. Under high-impact and high-speed conditions, materials must provide both excellent wear resistance and sufficient impact toughness.

For wear parts (high-chromium castings), chemical composition and hardness (typically 58–60 HRC) must be strictly controlled.

Alloy systems such as Mo1 and Ni1 are commonly used to achieve a balance between wear resistance and toughness.

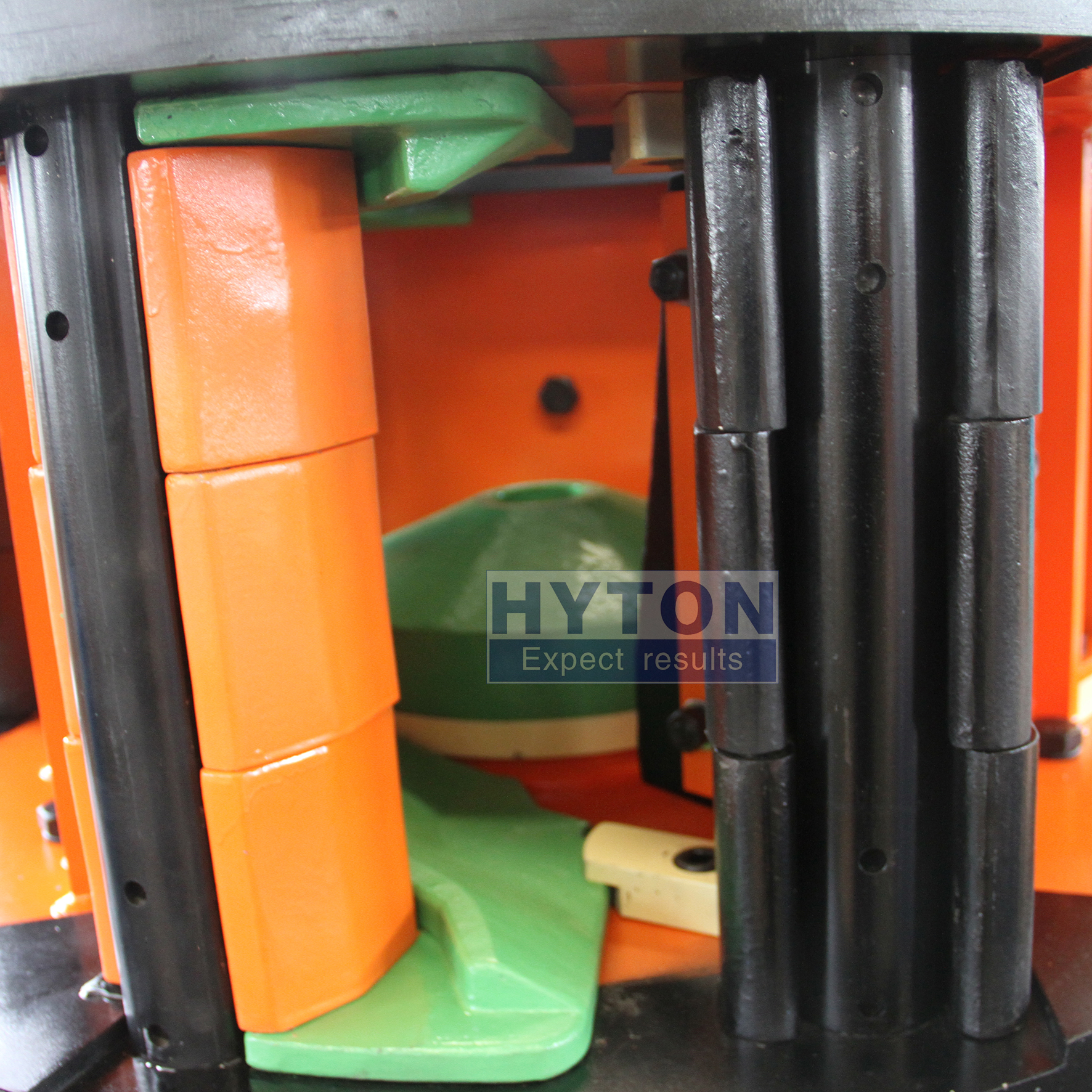

Key Wear Components in the Rotor Assembly

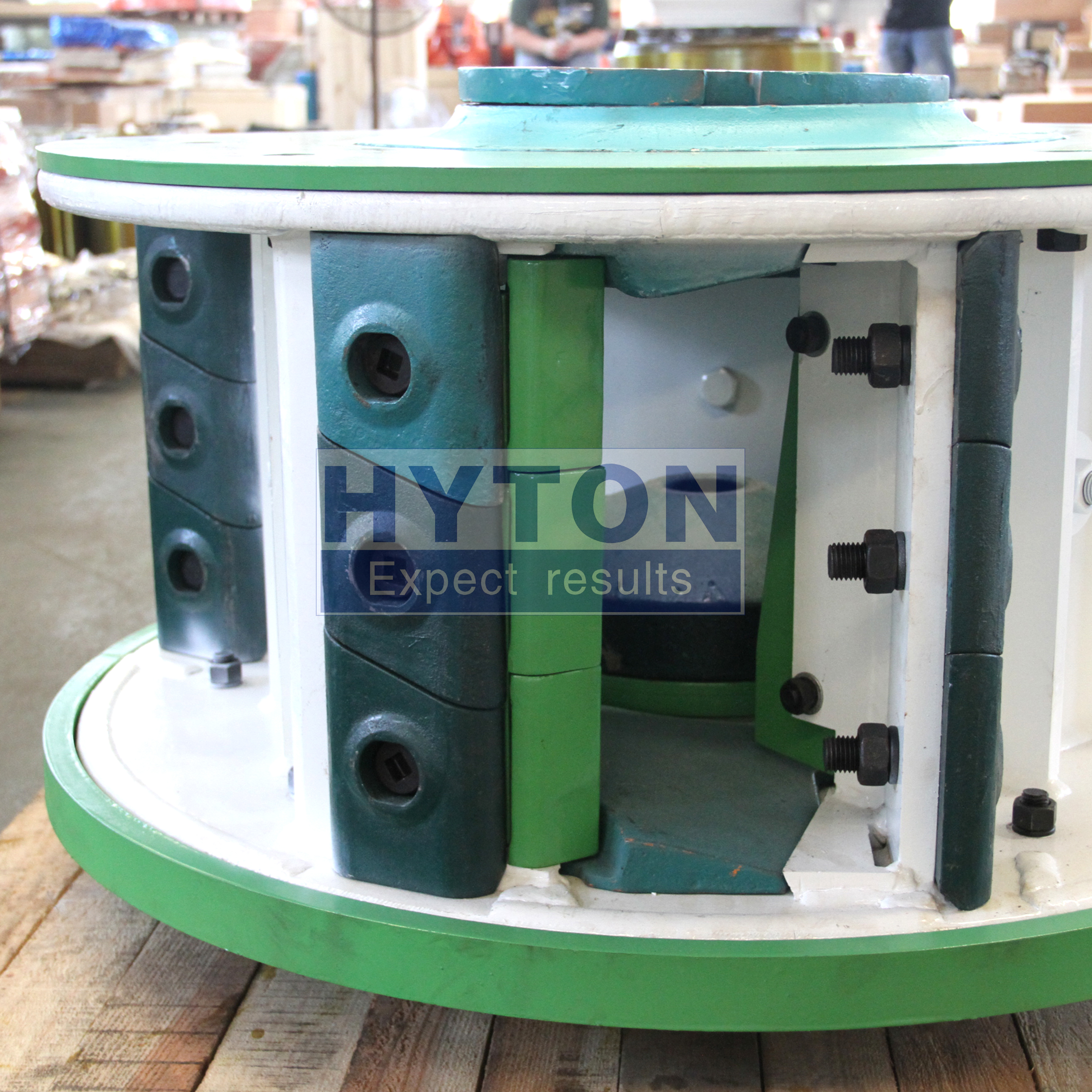

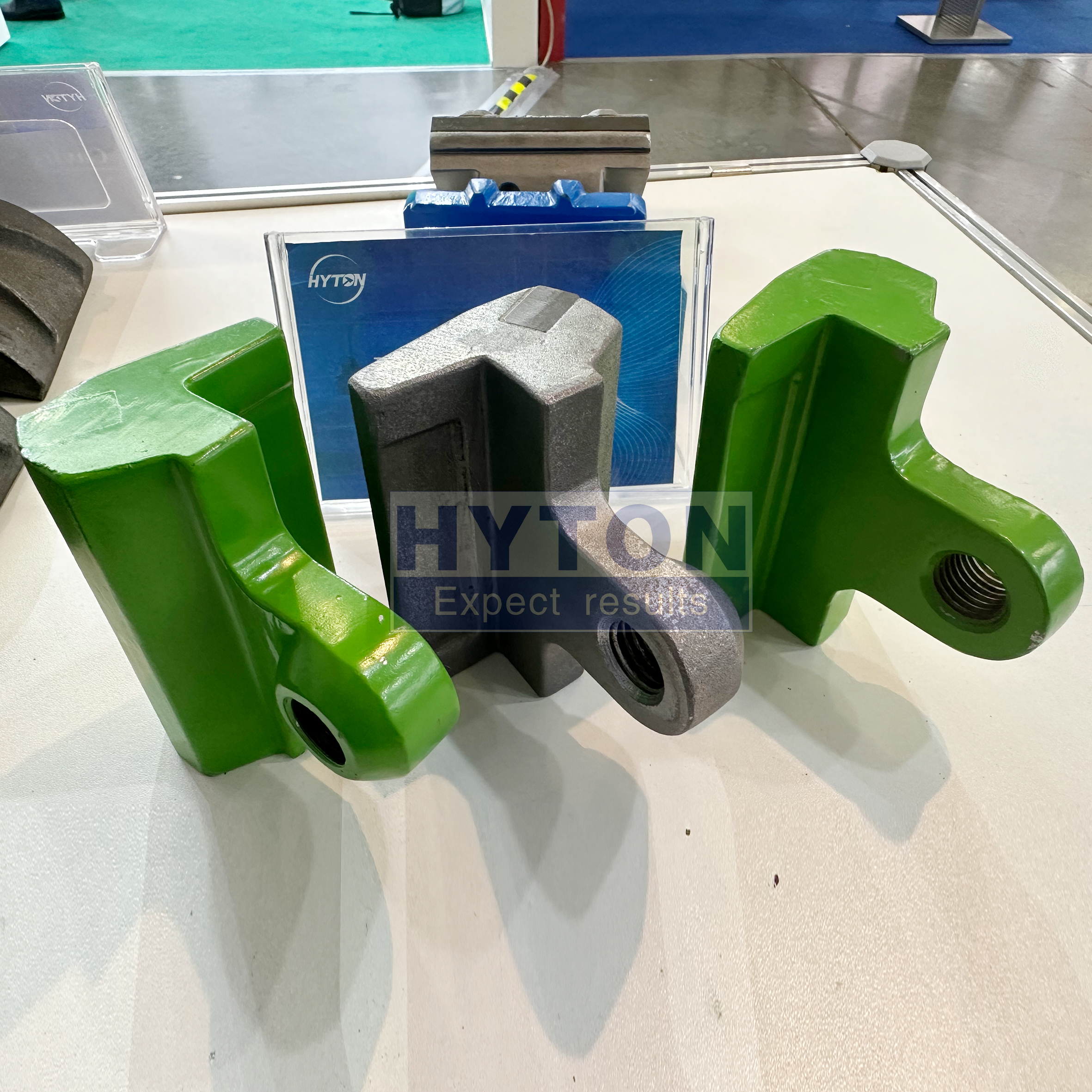

Rotor Tips: Composite structure with high-strength cast steel base (such as 40Cr) and tungsten carbide inserts at impact zones. This design ensures impact resistance and improved wear performance.

Top and Bottom Wear Plates: Standard material Q345B; upgraded option NM450 (equivalent to Hardox 450) to extend service life.

4. Manufacturing Accuracy and Weight Control (Critical)

Under high-speed rotation, precision requirements are extremely strict, including stable casting accuracy, tight dimensional tolerances, and strict weight control.

Even slight weight deviation can lead to rotor imbalance, resulting in vibration or equipment failure.

5. Dynamic Balancing: Core of Reliability

Dynamic balancing ensures stable high-speed operation, reduces vibration and impact, and protects bearings and overall machine structure.

Without proper balancing, material quality alone cannot guarantee performance.

6. Assembly and Welding: Structural Integrity

The rotor is a highly integrated system requiring strict weight matching, precise installation, and accurate fit.

High-quality welding improves structural strength, prevents cracks under impact, and ensures long-term stability.

7. Conclusion: A System Engineering Approach

A high-quality VSI rotor assembly depends on multiple factors: material determines wear life, precision ensures controllability, balance guarantees stability, and process defines reliability.

Under high-speed conditions, even minor defects will be amplified, directly impacting performance and service life.

Hyton provides one-stop wear and spare parts solution for Barmac series VSI crushers. Here are the specific part numbers for the Barmac series rotor assembly. Please refer to them：
